Eagletac Teeny DX3E

• 1000 LED lumen powered by Luminus SST20 LED
• Instant access to low/medium/high/max output
• All levels brightness are programmable
• Eight brightness levels/7 AUX levels
• Waterproof IPX-6 Type-C USB Rechargeable
• On/Off switch lock-out function w/ blink locator

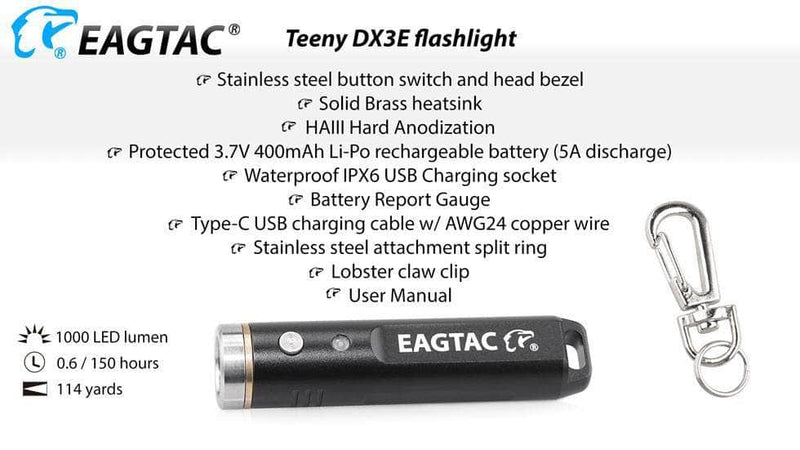

• Stainless Steel Button Switch, Brass Heatsink
• Built-in 3.7V Li-Po 400mAh battery
• 114 yards / 105 meters maximum beam distance
• Up to 0.6 hrs on MAX output, 150 hrs on low output



Eagletac Teeny DX3E Performance

Teeny DX3E LED

Luminus SST20 Cool White LED

Teeny DX3E Max output

1000 LED Lumen / 730 ANSI Lumen

Center lux @ 1 meter

2,750 lux

Teeny DX3E Beam distance

114 yards / 105 meters

Teeny DX3E Output levels

1000/470/200/100/50/15/5/1 LED lumen / 730/350/150/75/40/12/4/1 ANSI lumen

Teeny DX3E Runtime

0.6/0.8/1/2/5/12/40/150 hours

Teeny DX3E Battery

Battery Type

Li-Po

Battery included

Yes (Built-in)

Built-in rechargeable

Type-C USB

Operating voltage

2.7V – 4.2V

Battery requirement

–

Teeny DX3E Control

Control Type: Side switch

Hidden auxiliary outputs

Flash(Hi)/Strobe(Constant)/S.O.S./Strobe(Var)/Beacon(Long)/Beacon/Pulsing(Lo)

Dimensions

Body Diameter

0.5 inch (13.3mm）

Head Diameter

0.6 inch (15.3mm）

Length

2.6 inch (67.15mm)

Weight w/o battery

–

Weight w/ battery

0.9 ounces (25.9 grams)

Construction:

Flashlight Body Material

HAIII hard anodization aerospace aluminum

Teeny DX3E Reflector

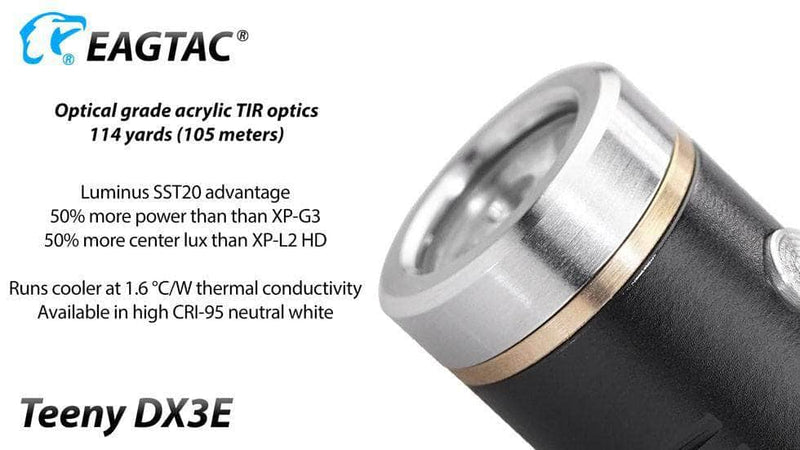

Optical grade acrylic TIR optics

Teeny DX3E Waterproof

IPX-6

Teeny DX3E Optional LED1

LED (1)

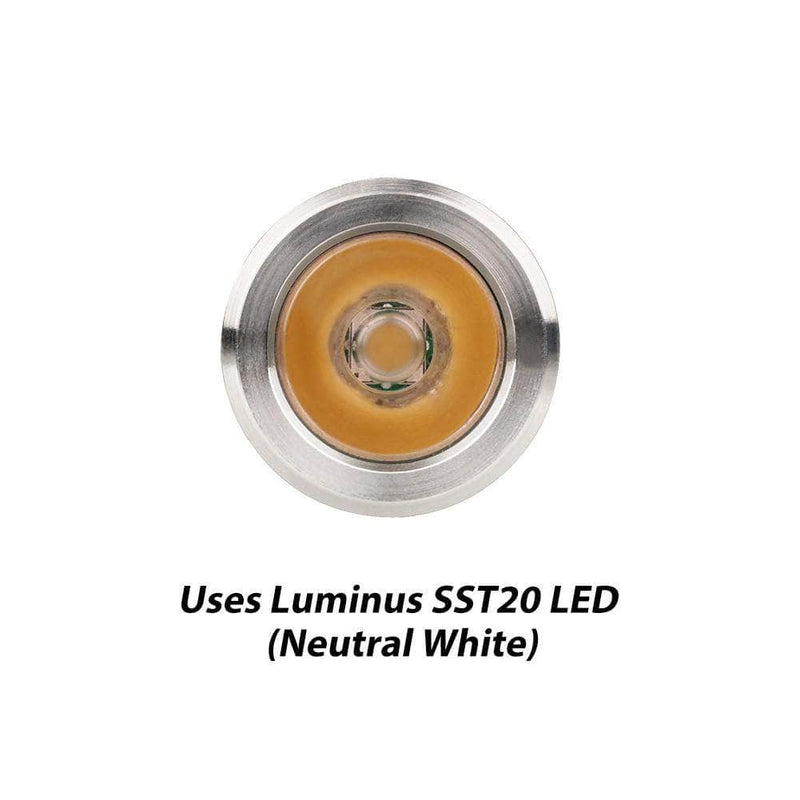

Luminus SST20 Neutral White CRI-95 LED

Teeny DX3E Max output (1)

780 LED Lumen / 640 ANSI Lumen

Teeny DX3ETeeny DX3E Center lux @ 1 meter (1)

2,300 lux

Teeny DX3E Beam distance (1)

105 yards / 96 meters

Teeny DX3E Output levels (1)

780/360/150/80/40/12/4/1 LED lumen / 640/270/110/55/30/10/3/1 ANSI lumen

Teeny DX3E Runtime (1)

0.6/0.8/1/2/5/12/40/150 hours
