Using single AAA battery, max 90 lumens, or 10440 Li-ion battery, max 550 lumens. Flat top, UNPROTECTED 10440 battery suggested. Some button-top batteries may also work, but some brands make the button to long which might cause a problem.
There is one tritium slot at the tail switch, 1.5*6mm in size. However, we do not offer them with tritium installed.
Some models of Ni-MH batteries have high internal resistance causing the low voltage protection to kick in on the light and turn it off. For that reason, we recommend 10440 or alkaline.
There is one tritium slot at the tail switch, 1.5*6mm in size. (No Tritium included or installed)

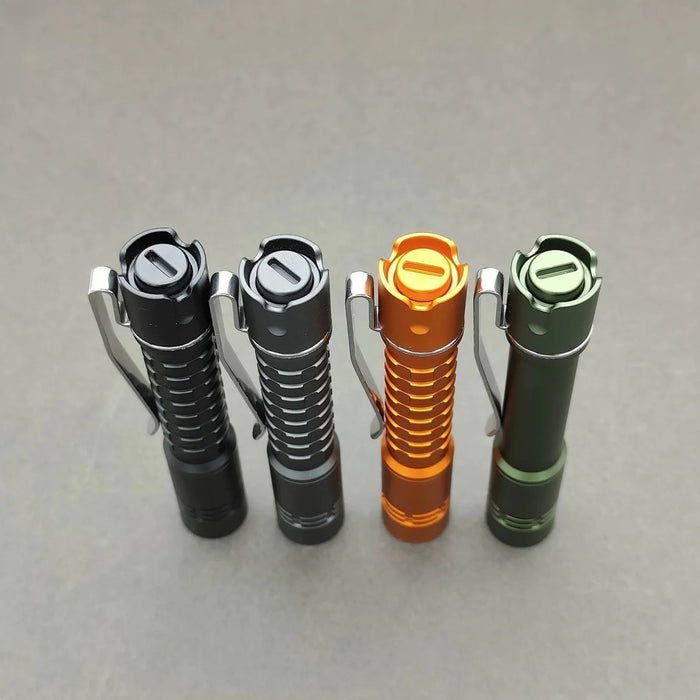

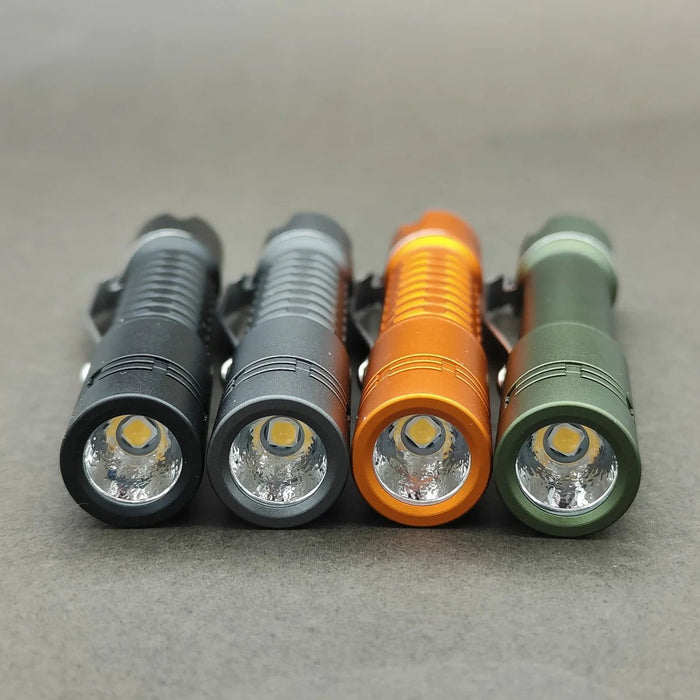

The ReyLight Pineapple Mini aluminum is 89mm in length (including the switch button) with a diameter of 15mm and it weighs 33 grams.
The Pineapple Mini aluminum driver has battery reverse protection, high-temperature protection, and low voltage protection.
1. (Full click to) Turn on the light.
2. Half-click the button 8+ times. The light will now blink once, then strobe, blink twice, then strobe, blink three times, then strobe…After 5 blinks and a strobe, the sequence repeats.
a. 1 blink: mode group selection. Half-click the button to enter this menu.
i. 1 blink: (ML)-2%-20%-100%
ii. 2nd blink: (ML)-10%-40%-100%
iii. 3rd blink: (ML)-2%-10%-50%
iv. 4th blink: (ML)-50%-100%-strobe-SOS
It then repeats. Half-click the button during any blink to select that mode group.
b. 2 blinks: mode memory on-off toggle (default off). Half-click the button during the two blinks or during the strobe after to turn mode memory on. Repeat to turn mode memory off.
c. 3 blinks: moonlight mode off-on toggle (default on). Half-click the button during the three blinks or during the strobe after to turning moonlight off. Repeat to turn moonlight on.
d. 4 blinks: mode order toggle (default LMH). Half-click the button during the four blinks or during the strobe after to change the mode order from Low Medium High to High Medium Low. Repeat to reverse the order.
e. 5 blinks: factory reset. Half-click the button during the five blinks or during the strobe after to reset the light to factory settings.
Shortcut: quick double-tap to turbo.
