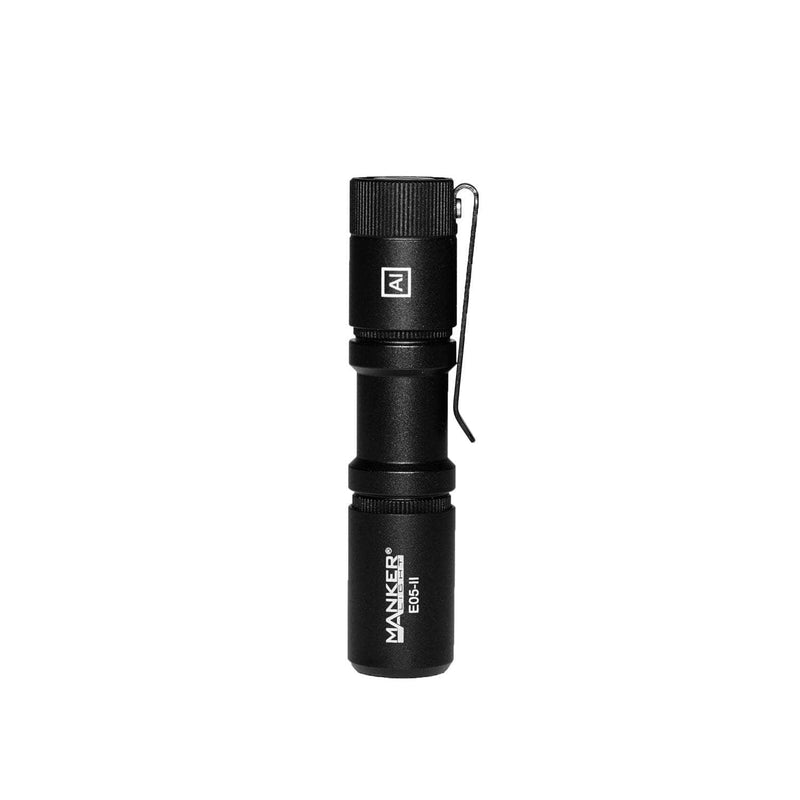

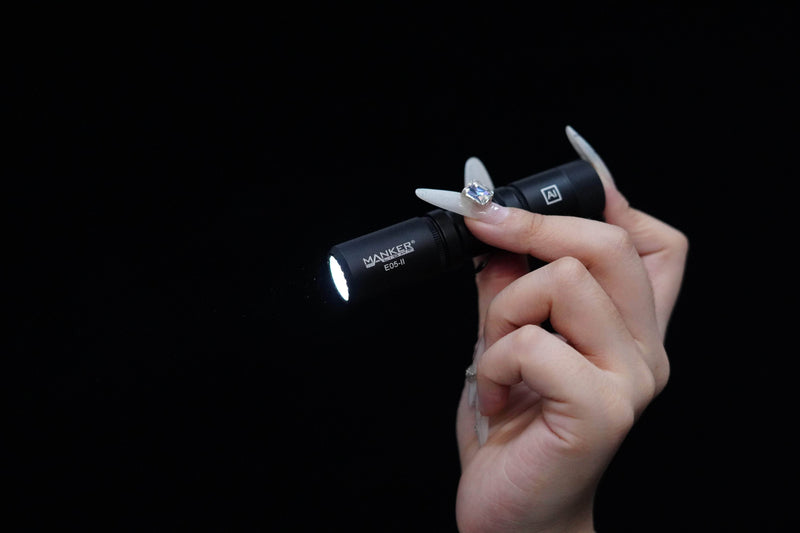

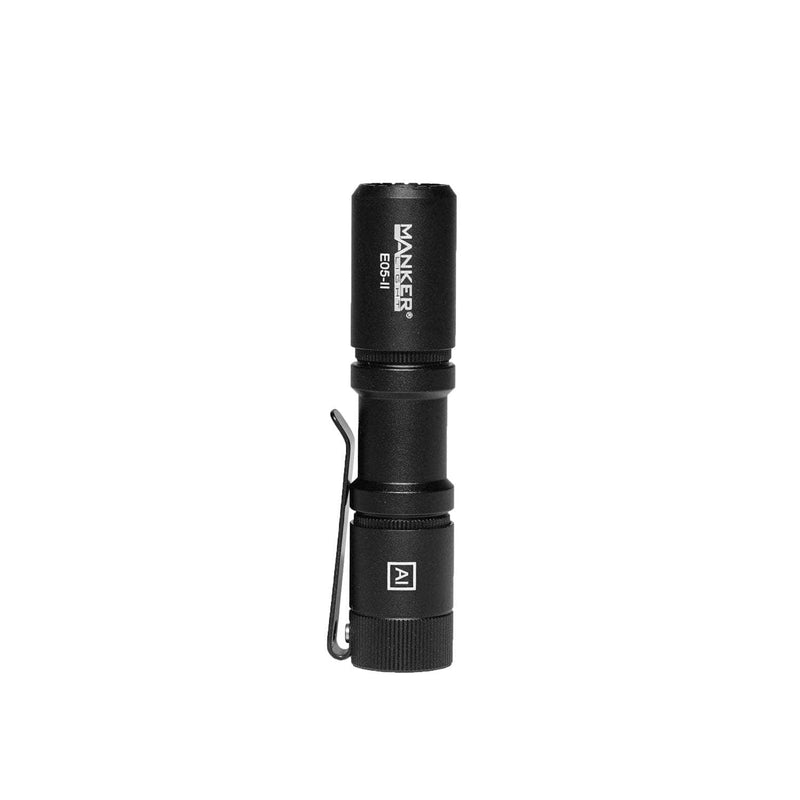

Manker E05 II
The Manker E05 II exhibits a combination of compactness, versatility, and strong performance, making it a solid everyday carry flashlight. Its multi-fuel design, waterproof and drop-resistant characteristics, alongside a one-handed operational design, reflect a well-thought-out engineering approach. The variety in body color and filter options add a touch of personalization, while its high lumen output and substantial beam distance highlight its extreme performance in its class. The deep carry clip design, crafted from durable stainless steel, epitomizes the flashlight's practicality and utility, catering to a range of user preferences and applications.
** Please note that brightness specs here or in the manual are inaccurate as our stock has the Nichia 519A 4000k LED **
Manker E05 II Key features

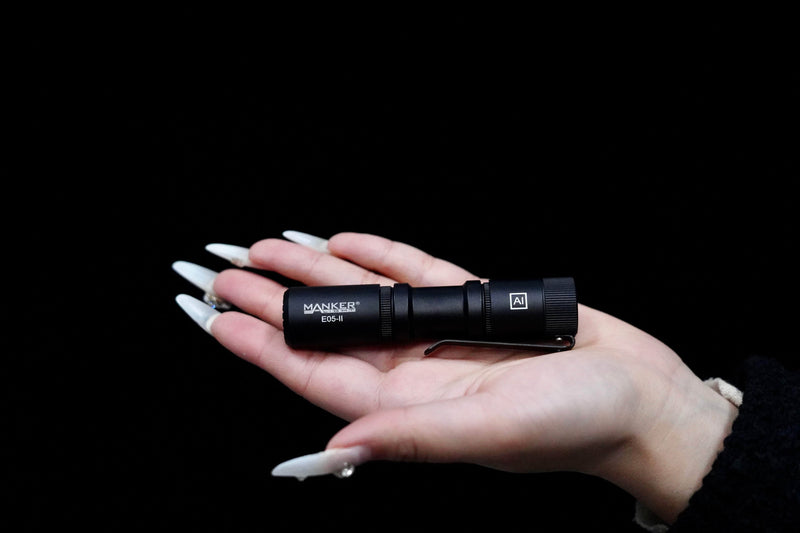

1. Ultra-compact Size, lightweight for perfect everyday carry
2. Multi-fuel design:14500 li-ion, Ni-MH AA, Alkaline AA
3. Extreme performance in its class (1300 lumens illumination / Constant current/ 105° beam angle/148 meters beam distance)
4. IP68 waterproof rated,real tested 2 meters underwater for 60 minutes & 1.5 Meters Drop-resistant
5. High-cost, durable construction & engineering
6. Single tail-switch control for one-handed operation

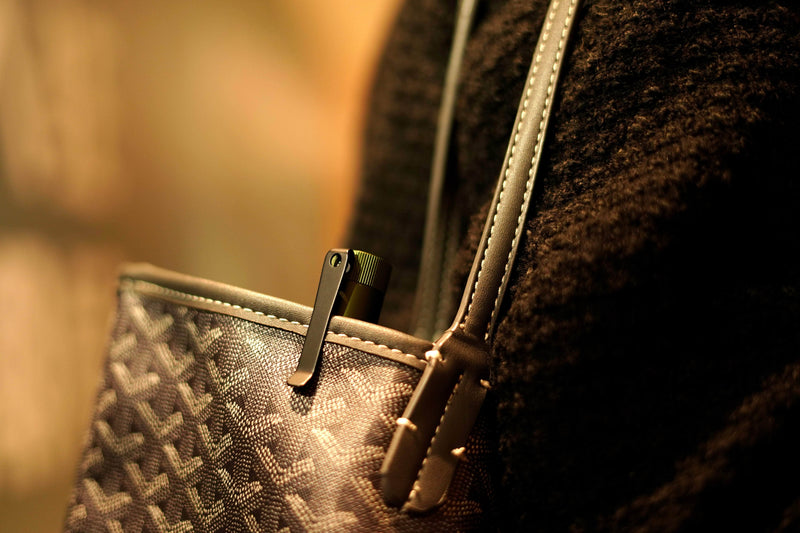

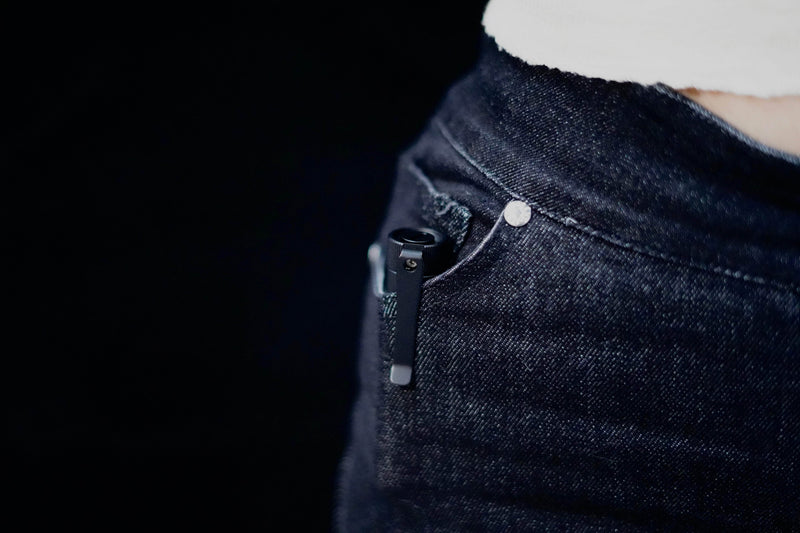

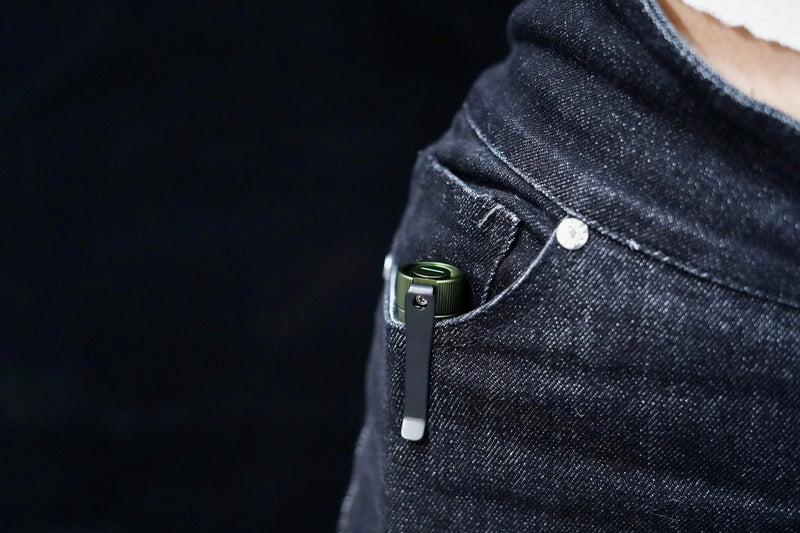

7. 304 stainless steel deep carry clip design

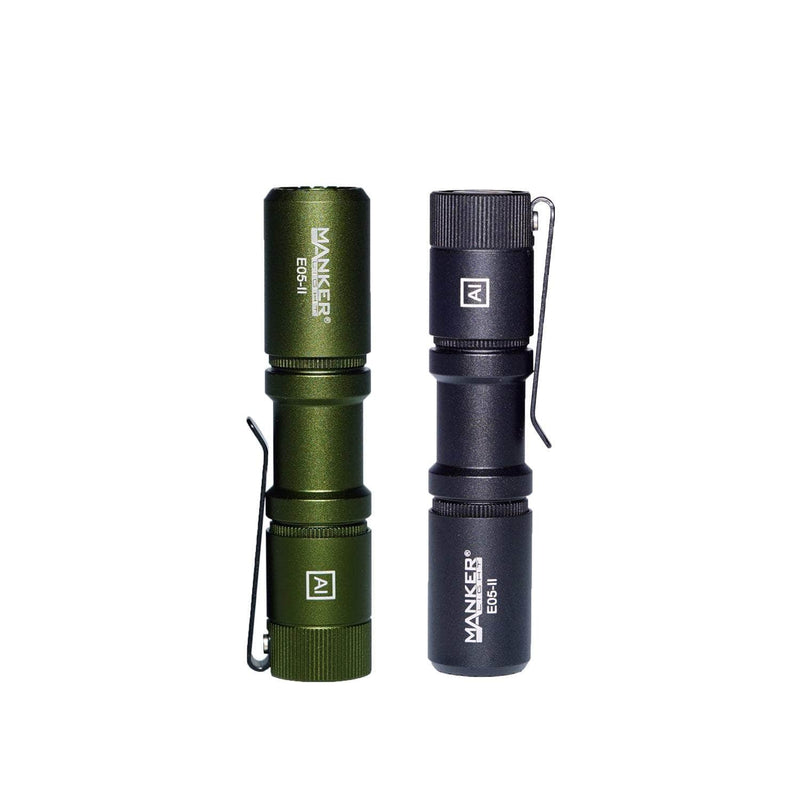

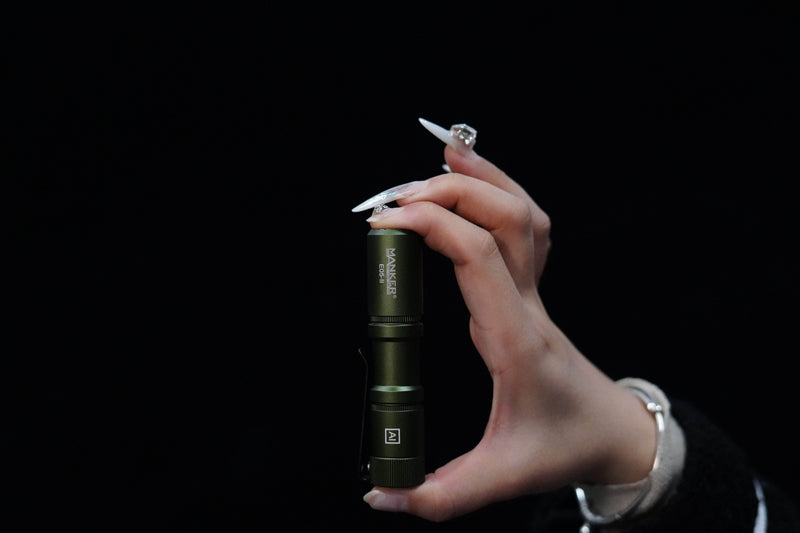

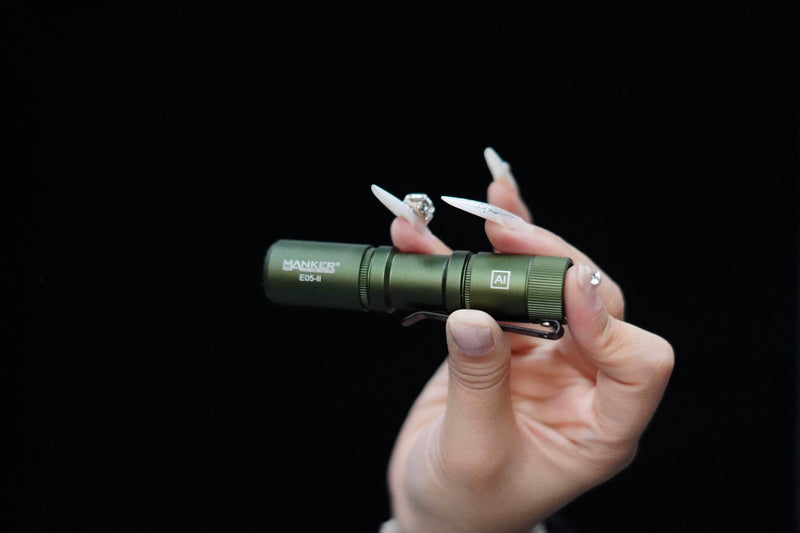

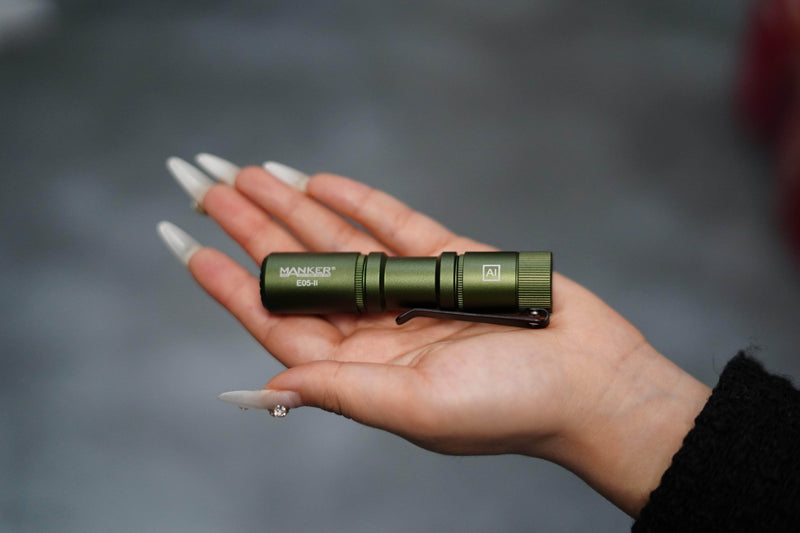

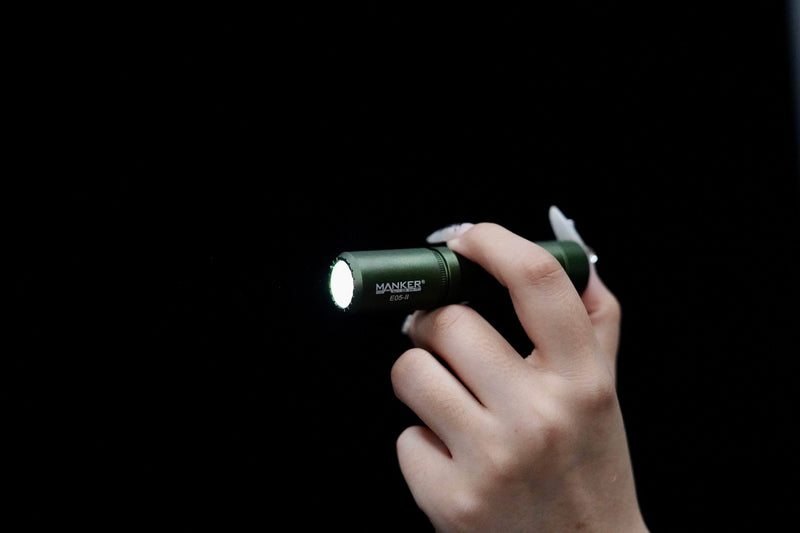

8. Multi body color option: black, army green ...
9. Multi-color filter options: white / red
10. Versatile usage applicable
Manker E05 II Specifications
• Light source: 1 x Nichia 519A 4000k LED
• Light Modes: Low - Medium - High + Strobe
• Output: 1300 lm - 300 lm - 8 lm + 1300lm (20Hz) (powered by 14500 USB-C Li-ion Battery)
• Runtime: 2 min +1 hrs+4 hrs - 1hrs 30 min + 3hrs 50 min - 50 hrs (powered by 14500 USB-C Li-ion Battery)

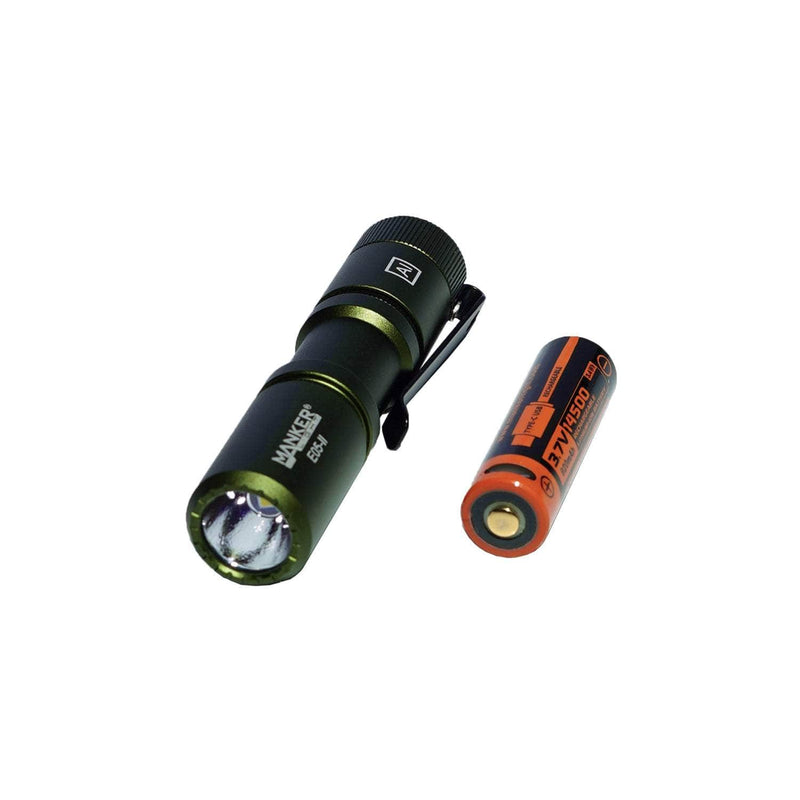

• Battery: 1x 14500 li-ion / 1x Alkaline AA / 1x Ni-MH AA
• Max Beam Distance: 148 meters (485.56 feet)
• Working Voltage: 0.9 V - 4.2 V
• Driver: High efficiency constant current circuit (both 14500 and AA)
• Body Material: Aerospace aluminum alloy with type III hard anodized
• Clip Type: Deep carry clip
• Clip Material: 304 stainless steel with PVD black plated
• Button Material: Aerospace aluminum alloy with type III hard anodized
• Contact Spring Retainer Material: phosphore bronze / gold plated
• Lens: Dual-sided AR coated, 99% transmittance toughened Glass
• Optic: Orange peel aluminum reflector with vacuum plated
• Switch Type: Forward-click Switch (mechanical switch)
• Tritium: 1 slots in button cap. (fit for 6*1.5 mm)
• Size: 91.35mm (length) x ø17mm (min body dia.) x ø20mm (tail dia.) / 3.60" x 0.67" x 0.79"
• Weight: 63.8 g / 2.25 oz (included 14500 battery)
• Impact Resistance: 1.5 meters
• Waterproof: IP68 rated, tested 2 meter underwater for 60 minutes
Manker E05 II Package content
1x Mankerlight E05 II 4000K warm white 800+ lumen LED flashlight

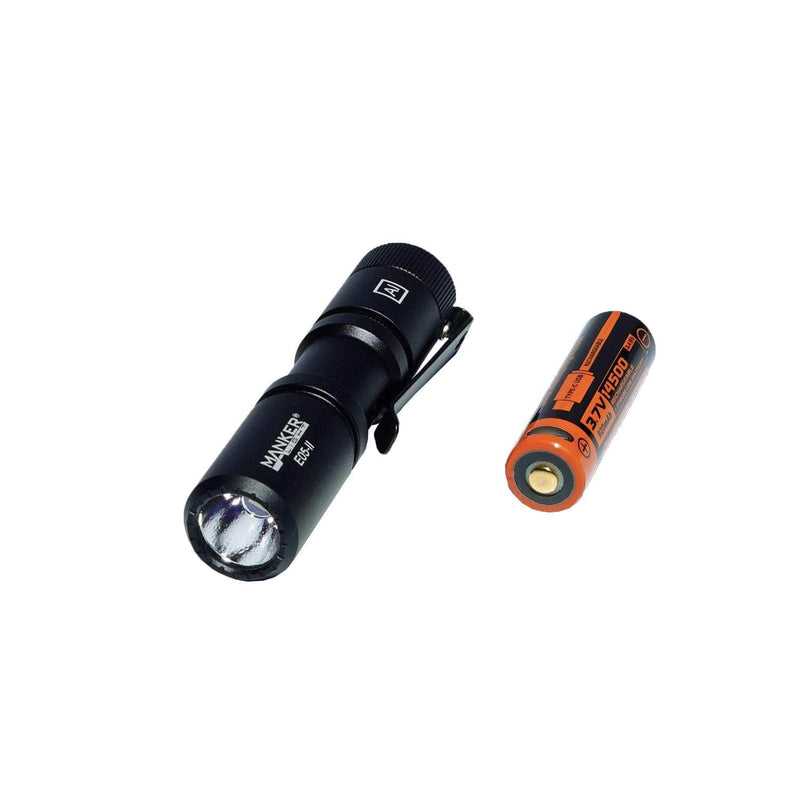

1x Mankerlight 920 mAh protected 14500 lithium battery with Type-C USB port
1x Type-C USB charging cable
1x Lanyard
1x Spare waterproof o-ring
1x User manual
Manker E05 II Operating Instructions
ON/OFF: Fully press the switch.
Momentary ON: Half-press from OFF until released.
Output change①: Continously half-press the switch (interval more than 0.5 second) to change different outputs ( Low - Med. - High), full press to lockout the selected output.
Output change②: From OFF status, fully press the switch to turn on Low output, and then fully press to turn OFF; fully press again to turn on Med. output, and then fully press to turn OFF; fully press again to turn on High output, and then fully press to turn OFF; If keep fully press again, turn back to low output.
Memory function: When OFF the light for 2 seconds, full press to output last used (except Strobe)
Strobe: Quickly double half-press the switch from OFF.
Note: When battery voltage is low, the light will step-down directly to low output, sometime you turn off the light and then turn on again, it can be lighted up but will also step-down to low output soon. When battery voltage is extremely low, the light will shut OFF automatically.
Manker E05 II Battery Charging Indicator
Plug USB Type-C socket of the included charging cable into the USB-C port of 14500 battery, and connect another USB socket to the adapter. 14500 battery has built-in intelligent identified charging function. When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.
Manker E05 II Technical Data
Powered by Mankerlight 14500 USB-C li-ion battery:
Low: 8 lumens, 50 hours
Medium: 300 lumens ~ 8 lumens 1 hrs 30 minutes + 3 hrs 50 minutes
High: 1,300 lumens ~ 300 lumens ~ 8 lumens, 2 minutes + 1 hours +4 hours
Strobe: 1,300 lumens 20Hz
Beam intensity: 5,476 cd
Beam distance: 148 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2meters underwater for 60 minutes
Powered by AA Ni-MH Battery:
Low: 1.5 lumens, 27 hours
Medium: 100 lumens ~ 1.5 lumens, 1 hours 50 minutes + 3 hours 3 minutes
High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 2 minutes + 2 hours + 30 minutes
Strobe: 420 lumens 20Hz
Beam intensity: 1,806 cd
Beam distance: 85 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes
Powered by AA Alkaline Battery:
Low: 1.5 lumens, 55 hours
Medium: 100 lumens ~ 1.5 lumens, 1 hours 20 minutes + 16 hours 50 minutes
High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 1 minutes + 48 minutes + 3 hours 15 minutes
Strobe: 420 lumens 20Hz
Beam intensity: 1,806 cd
Beam distance: 85 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes
