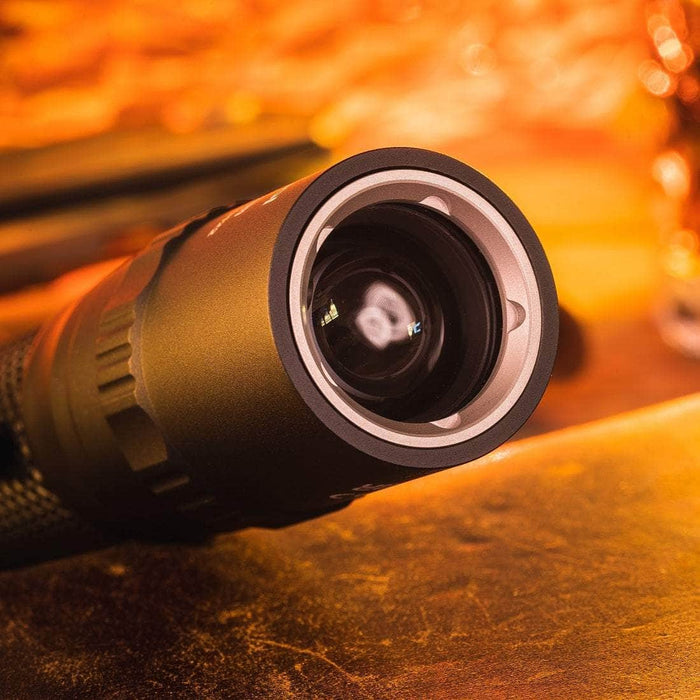

Weltool LH10 LEP Light Head
The LH10 is a revolutionary product, it is a LEP light head with a spill beam, which has a beam intensity specific to LEP light sources, and also a spill similar to an LED beam at a distance. The Weltool LH10 has a high mode of 175,000 candela and a throw of 836 meters with 630 lumens of total light output. It also has a low mode capable of 60,000 candela, 489 meters of throw and 200 lumens of output. This LEP beam with spill, pioneered by Weltool, is more conducive to long-range shooting, with more visible area in the distance than traditional LEP lights, and less interference light at close range, it is not easy to expose your surrounding environment or Teammates, it is also beneficial for the shooter to avoid spilling light to illuminate surrounding objects or plants and affect the vision when shooting prone or kneeling. Similarly, it is also suitable for the shooter to maintain situational awareness when entering narrow passages. This low lumen high candela beam combines the respective advantages of LEP and LED, pioneered by Weltool.
Weltool LH10 LEP Light Head Features:
Aluminum alloy material, hard anodized
PMMA optical lens, coated tempered glass lens
Using high power white light LEP light source, color temperature 6000-6500K
Weltool LH10 LEP Light Head output:
|
HIGH
|
LOW |
| LH10 Light Output |
630 lumens |
200 lumens |
| LH10 Beam Intensity |
175,000 candela |
60,000 candela |
| LH10 Beam Distance |
836m/914yd |
489m/534yd
|
| LH10 Runtime |
50min
|
2h
|
The above data is obtained from Weltool 3000mAh 18650 li-ion battery and 18350 1200mAh battery This item features protection against battery over-discharge, protection against improper battery polarity, and a reminder function for low voltage. It exibits neither a flicker nor a noise.
The Weltool LH10 uses one high-drain, rechargeable Li-Ion battery operating at 3.6V or 3.7V; CR123A batteries are not compatible and may damage the light head.
The diameter of the LH10 LEP light head is 29mm
It is advised that you use the Weltool TC70 tail cap, which is compatible with the Weltool W35/W65 weapon light body and the surefire M600DF scout light (Can handle 10A current to ensure full power output of LH10)
It is possible to make a T14L hand-held LEP light by combining this with the body of the Weltool BB18 hand-held light and the TC20 tail cap.
