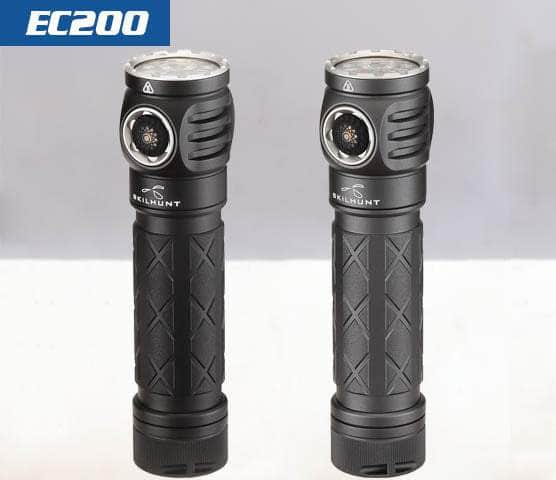

Skilhunt EC200
Introducing the Skilhunt EC200, the ultimate EDC flashlight designed for those who demand power and versatility. Boasting an impressive 2250 lumens, this flashlight is powered by a reliable 18650 battery, ensuring you're never left in the dark. The universal USB-C charging port makes recharging convenient and efficient. The Skilhunt EC200 features a customized user interface with a programmable variety of brightness levels, allowing you to tailor the light to your specific needs. With three white LEDs, it offers wide flood illumination and an ultra-bright output, perfect for any situation.
The flashlight's ultra-efficient circuit design and TIR lens provide a soft, balanced beam, while the two-color indicator keeps you informed of the real-time battery power. Built to withstand the toughest conditions, the Skilhunt EC200 has a rugged, indestructible aluminum body with anti-scratching type III hard anodization. Its multi-level dissipating heat design and copper starboard ensure excellent heat dissipation, complemented by the flashlight head's integrated construction for high thermal conductivity.
The side switch button allows for easy mode transfer and output adjustment, making it user-friendly and intuitive. The high-efficiency driver circuit ensures no visible flash in any mode, while the automatic memory function remembers your last used setting and can be preset for instant access. Intelligent temperature control technology maintains stable and safe use, and reverse polarity protection safeguards against improper battery installation.
Additional features include a lock-out function to prevent accidental activation, a location indicator to help you find the light in the dark, a magnetic tail stand for hands-free use, and a double-sided pocket clip for versatile carrying options. The Skilhunt EC200 is the perfect companion for those who need a powerful, reliable, and adaptable flashlight in their everyday carry arsenal.
Skilhunt EC200 Powerful EDC 2250 lumens USB-C Rechargeable LED flashlight

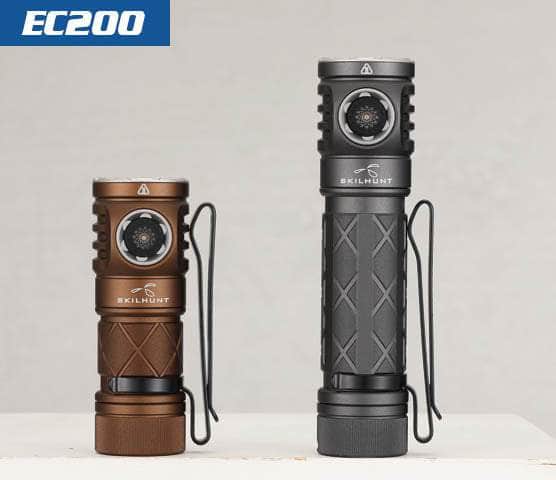

The EC200 series are compact and versatile flashlights designed for a variety of uses. The USB-C charging ensures convenience and efficiency, while their durable build makes them perfect for everyday carry, outdoor , camping, and home use.
Skilhunt EC200 LED:

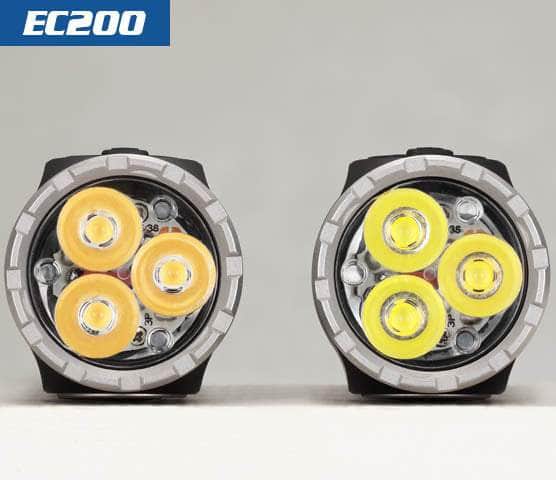

3 x CREE XP-G4, Cool White 6500K
3 x Nichia 519A Neutral White High CRI R9080 4500K
Max output:
CREE Cool White ANSI 2250 Lumens, Nichia High CRI 4500K ANSI 1550 Lumens
Quiescent Current (μA) : 55
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×18650
Rated range: 2.7-4.2V, (Recommended 18650 battery that max discharge current ≥8A)
Dimension: L102.0 mm / 4.02″, Head diameter 25.0mm / 0.98 “.
Weight: 48.5g / 1.71 oz (Excluded battery)
Accessories: USB-C Charging Cable, Clip, Lanyard, Spare O-rings, User manual.
How to use
1. ON/OFF
Press the button once to turn the light on and off. When the light is turned off, it will memorized current brightness level or mode.
2. CHANGE BRIGHTNESS LEVEL
Note: C = Click (press and release quickly), H = Hold (press and hold)
From OFF:
H: Hold the button for 0.5 seconds to enter into <Low Group>(L1/L2).
1C: Activates <Main Group> (H-M1-M2).
2C: Activates <Turbo Group> (T1/T2).
3C: Activates <Strobe Group> (S1/S2/S3).
4C: Activates <Lockout> (This stops the light from turning on accidentally).
From ON <Main Group>, <Turbo Group>, <Low Group>
Press and hold the switch to automatically cycle, the level is selected when the side switch has been released, turn off memorized.
From <Main Group>
2C: Enter into <Turbo Group>, repeat operation to returns to <Main Group>.
3C: Enter into <Strobe Group>, repeat operation to returns to <Main Group>.
1C&H: Enter into <Low Group>, repeat operation to returns to <Main Group>.
From <Strobe Group>
2C: Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.
3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the light is off, quickly click the switch 4 times to enter the button lockout mode (location indicator activation at same time,the indicator light flash every 2 seconds.
Double clicks to turn on/off the indicator light). Quickly click the switch 4 times,the button unlock and activate Low mode.
4. LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds.
When the battery voltage drops below 2.7V, the light will turn off.
Charging
Connect the USB charging cable to an external USB power source, then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 10W (5V 2A) )
The red indicator means charging, when the battery charging completed, change to blue indicator.
NOTE:
Rechargeable function only for one 18650 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging may damage the battery.
Power indicator
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
Constant Blue Indicator: 100%~80% ,
Blinks Blue Indicator: 80%~50% ,
Constant Red Indicator: 50%~20% ,
Blinks Red Indicator: 20%~0.
Battery installation
Please make sure that the positive pole of the battery points to the head of the flashlight
when you replace the battery.
Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head
on the ground. The radiation energy of the flashlight may cause damage to the flashlight
itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is
high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.
Skilhunt EC200 Features:
– A 2250 Lumens powerful EDC 18650 flashlight.
– Universal USB-C charging port.
– Customized user interface,Programmable variety of brightness
– Three white LEDs wide flood illumination and ultra-bright output.
– Ultra efficiency circuit design.
– TIR Lens, soft and balanced beam.
– Two-colors indicator of real-time battery power
– Rugged indestructible aluminum body with anti-scratching type III hard anodization
– Multi-level dissipating heat design and copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
– Side switch button to transferring mode, user-friendly interface to adjust output.
– High efficiency driver circuit, no visible flash in any mode.
– Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
– Intelligent temperature control technology for flashlight stable and safe use.
– Reverse polarity protection, to protect from improper battery installation.
– Lock-out function. Avoids light turn on by unexpected.
– Location indicator help easy to find the light in dark.
-Magnetic tail stand
-Double sides pocket clip
