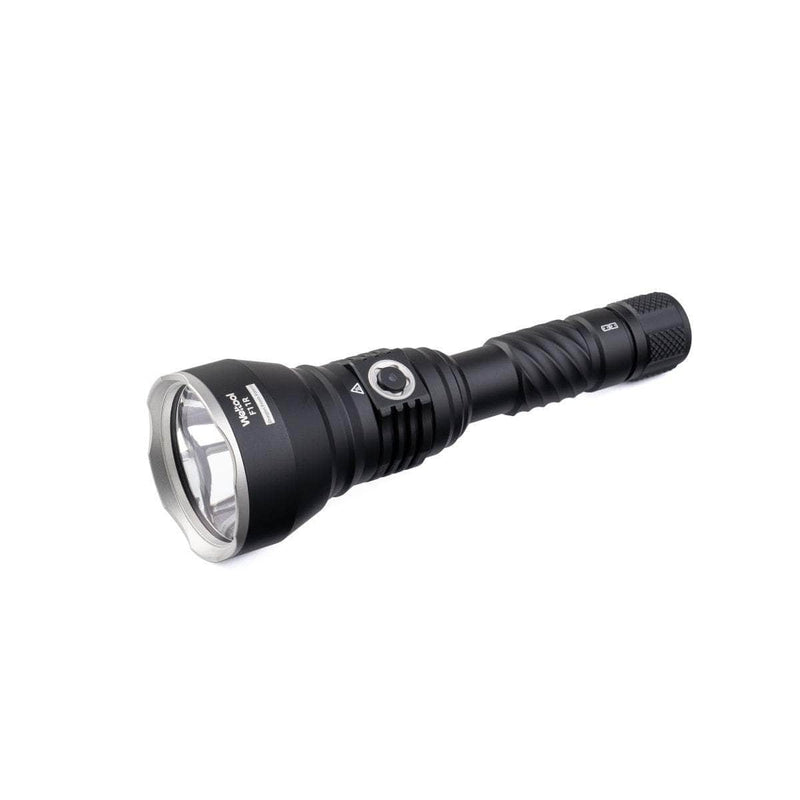

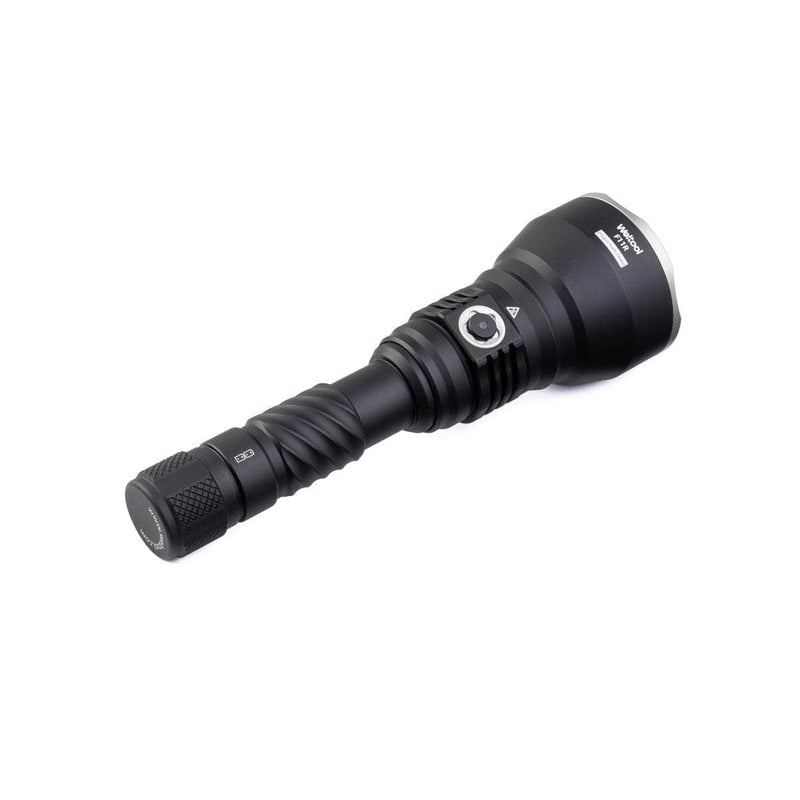

Weltool F11R“Dragon from Forest” Rechargeable long-range LED flashlight
The F11R is a rechargeable long-range LED flashlight with a patented USB-C charging structure. It uses two 22500 rechargeable lithium-ion batteries, and can also be equipped with an additional BB11 extension tube to use two 21700 batteries to increase battery life. At full power output, it has 2,100 lumens, 443,852 candela, a long-range distan
The flashlight has battery over-discharge protection, reverse polarity protection, low voltage reminder function, and low voltage cut-off protection function
Full power mode has overheat protection function; the flashlight has no flicker, no noise, and low standby power
15W fast charging with intelligent charging current adjustment and adaptive adapter load function

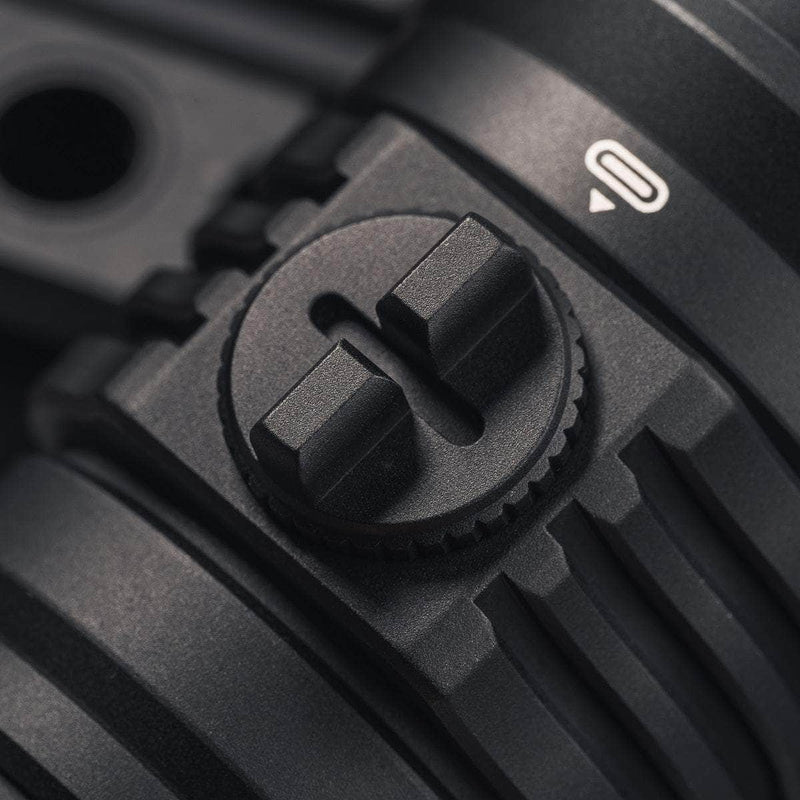

Patented USB charging structure, waterproof and dustproof; the USB port waterproof cover has a magnet, which can be attached to the flashlight body or metal
Includes 2 22500 lithium-ion batteries, or purchase a B11 extension tube to use 2 21700 lithium-ion batteries (Weltool INR21-60 is recommended)

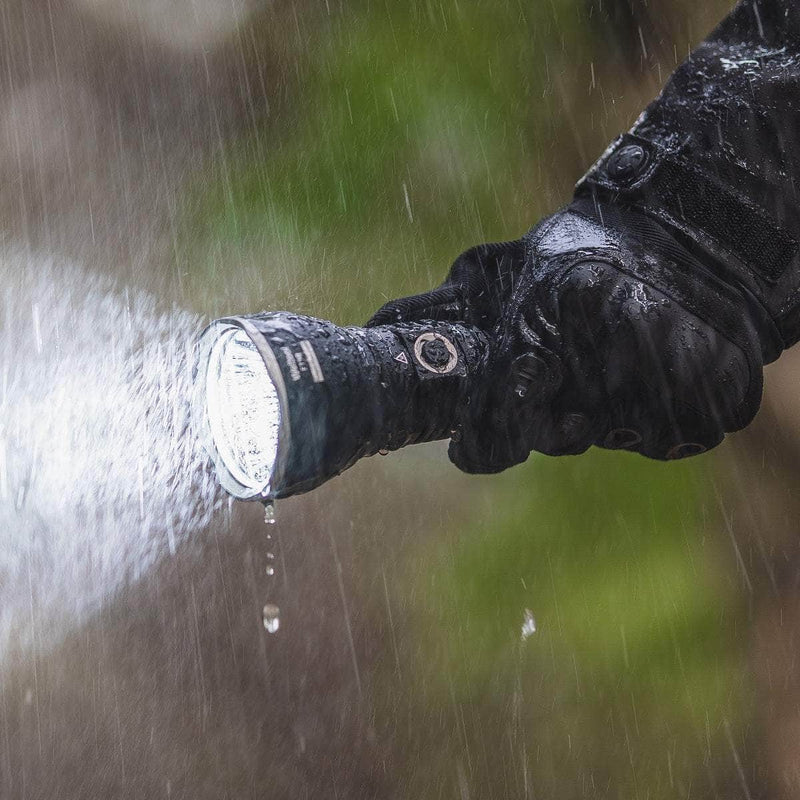

IP67, can be used in heavy rain
This flashlight has passed the 1-meter drop test
Each flashlight has an independent serial number
Weight: 379±1g (without battery)
Dimensions (±0.5mm): (head diameter) 65.3mm, (body diameter) 25.5-30mm, (2*22500 length) 210.5mm, (2*21700 length) 250mm
Included: two INR22-24 22500 lithium-ion batteries, Type-C charging cable, O-ring

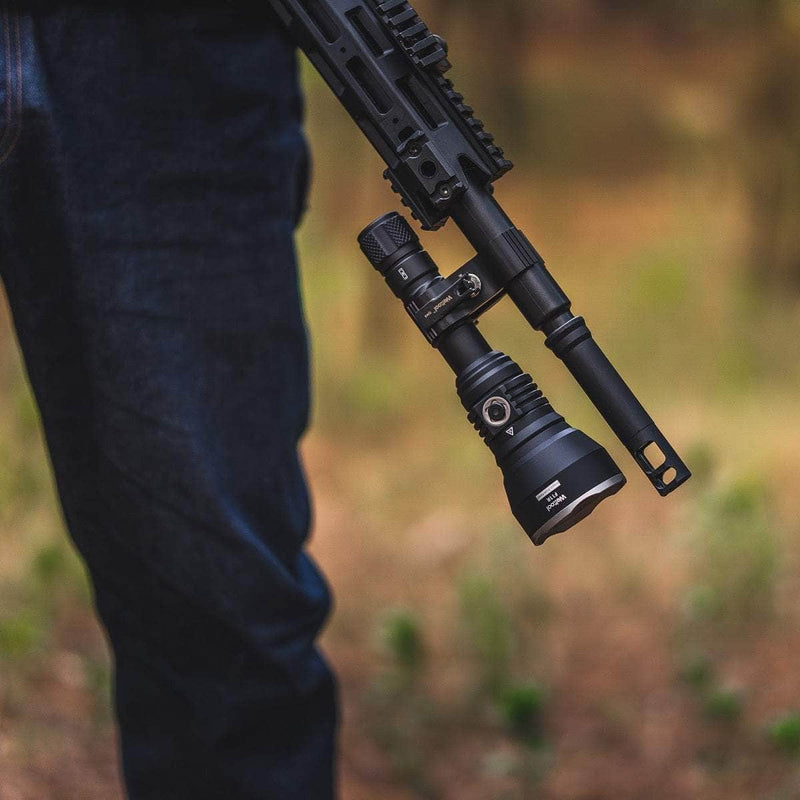

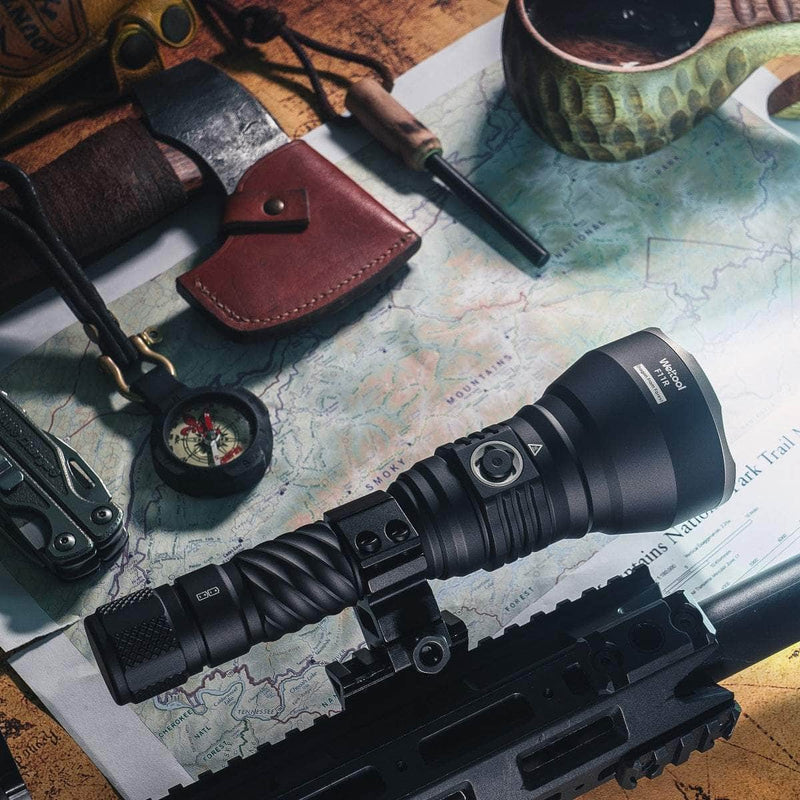

ce of 1,332 meters, and a strobe function. The side switch has a battery indicator light, and the charging port has a charging indicator light. The flashlight has a switch lock function to prevent accidental touches. The front end of the flashlight body can be equipped with a Weltool PM2 or PM23 mount to facilitate the installation of the flashlight on a scope or shotgun. It is suitable for outdoor search, rescue, hunting and other purposes.
Features:
6000 series aluminum alloy CNC machined, hard anodized surface
Aluminum alloy reflector, coated tempered glass lens, stainless steel bezel
Single high-power white light X-LED light source
Output:
These data are obtained by testing Weltool INR22-24 and INR21-60 batteries at room temperature. Different test environments and conditions will affect the test data and are for reference only.
The flashlight has battery over-discharge protection, reverse polarity protection, low voltage reminder function, and low voltage cut-off protection function
Full power mode has overheat protection function; the flashlight has no flicker, no noise, and low standby power
15W fast charging with intelligent charging current adjustment and adaptive adapter load function
Patented USB charging structure, waterproof and dustproof; the USB port waterproof cover has a magnet, which can be attached to the flashlight body or metal
Includes 2 22500 lithium-ion batteries, or purchase a B11 extension tube to use 2 21700 lithium-ion batteries (Weltool INR21-60 is recommended)
IP67, can be used in heavy rain
This flashlight has passed the 1-meter drop test
Each flashlight has an independent serial number
Weight: 379±1g (without battery)
Dimensions (±0.5mm): (head diameter) 65.3mm, (body diameter) 25.5-30mm, (2*22500 length) 210.5mm, (2*21700 length) 250mm
Included: two INR22-24 22500 lithium-ion batteries, Type-C charging cable, O-ring
Operation Instructions:
1. First, use the correct battery. This product can only use 2 lithium-ion batteries.
2. The flashlight has a polarity protection function. If it does not work, please check the battery in time.

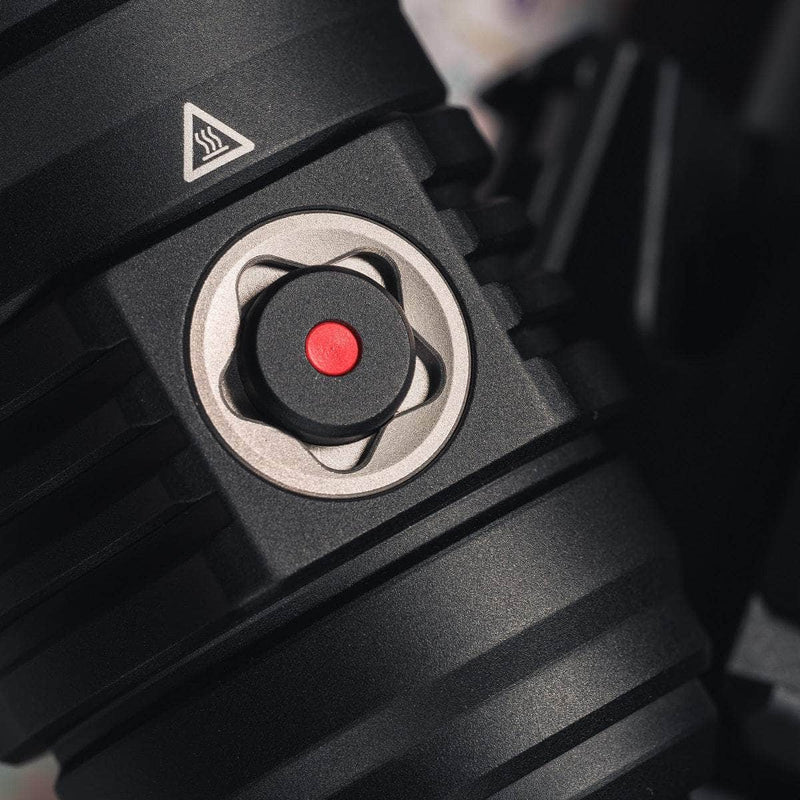

3. Quickly press the switch to turn the flashlight on or off. There is a power indicator on the switch button.
4. After turning on the flashlight, when you press and hold the switch, the flashlight will automatically switch to different modes. Release the switch to select the current mode and keep it on; in the Off state or any mode, quickly double-click to enter the full power mode, and quickly triple-click to turn on Strobe. After the flashlight is turned off, it will remember the mode before turning it off (but not full power and strobe).
5. At the moment of powering on or during use, the power indicator will turn on (green light when the power is sufficient, red light when the power is low, and the indicator will automatically turn off after 5 seconds); when the power is very low, the red light will keep flashing, and the main light of the flashlight will also flash, and then it will stop working at any time.
6. The power can also be detected when the flashlight is locked. Press the switch once and the power indicator will turn on.
7. There is a charging status indicator on the charging port. The red light means charging and the green light means it is fully charged.
8. After multiple charging and discharging cycles, it is recommended that you remove the batteries and charge each battery separately in a professional lithium-ion charger.
Switch lock and unlock function:
-
Press and hold the switch for more than 2 seconds in the off state to lock. The indicator light on the switch button and the main light of the flashlight will flash 3 times at the same time to indicate that it has been locked; after locking, the flashlight will remember the lock state and mode (not full power and strobe). At this time, when replacing the battery and using it again, it also needs to be unlocked.
-
In the locked state, press and hold the switch for more than 2 seconds to unlock. After unlocking, the main light will turn on in memory mode.
