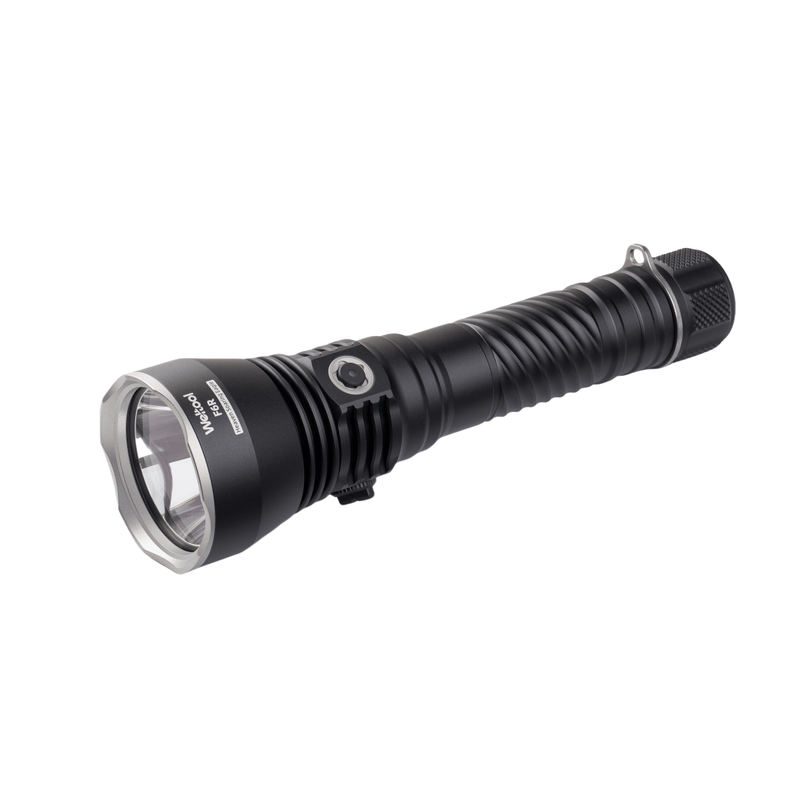

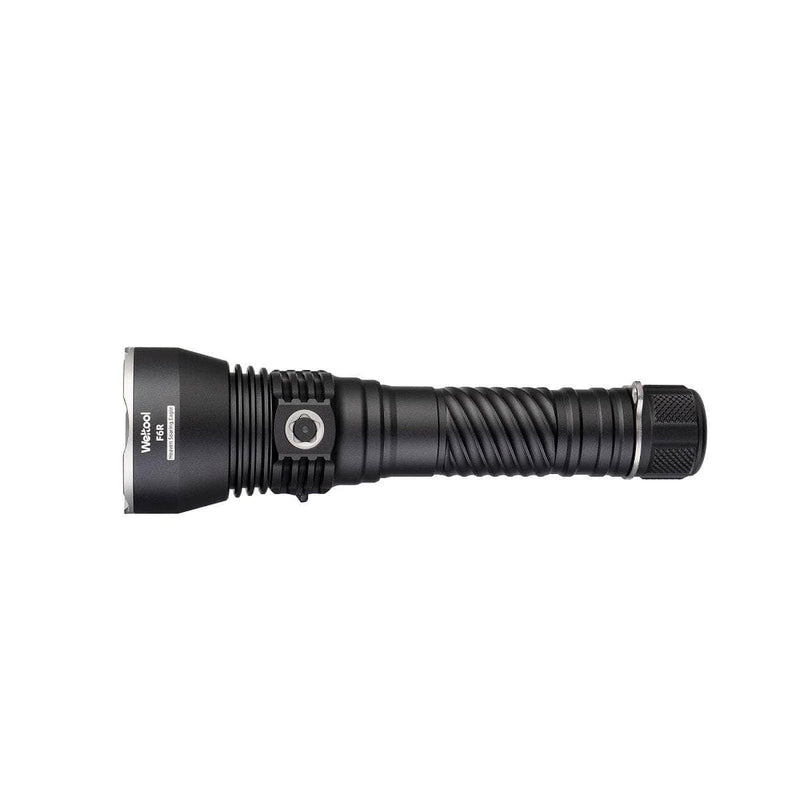

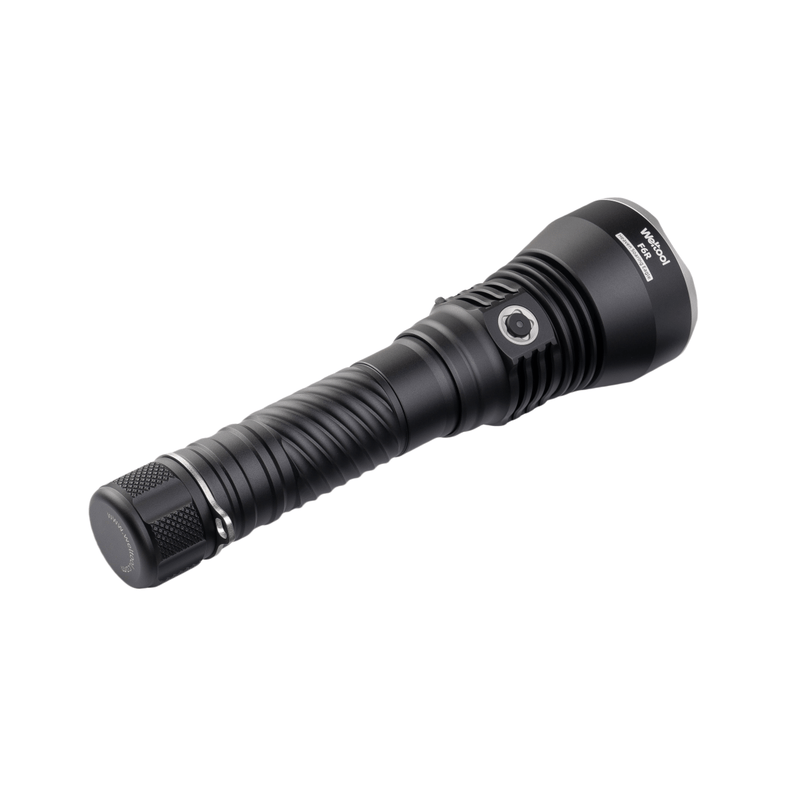

Weltool F6R “Heaven Soaring Eagle”Rechargeable LED Searchlight
Introducing the Weltool F6R – a powerhouse in the world of high-lumen, long-range rechargeable flashlights. With an impressive turbo output of 5,200 lumens and a remarkable throw distance of 1,202 meters, this flashlight is built to illuminate even the darkest environments. It’s powered by a robust 3.6V 15,000mAh LMFP battery, offering twice the cycle life of ordinary lithium-ion batteries for unmatched durability.
The F6R features a patented charging structure that’s waterproof and dustproof, with a convenient USB-C port complete with a charging indicator light. Its versatility shines through with a stainless steel UNC 1/4" threaded hole on the flashlight head, perfect for tripod mounting, and a stainless steel parachute ring at the base, allowing you to attach a shoulder strap for easy carrying on the go.

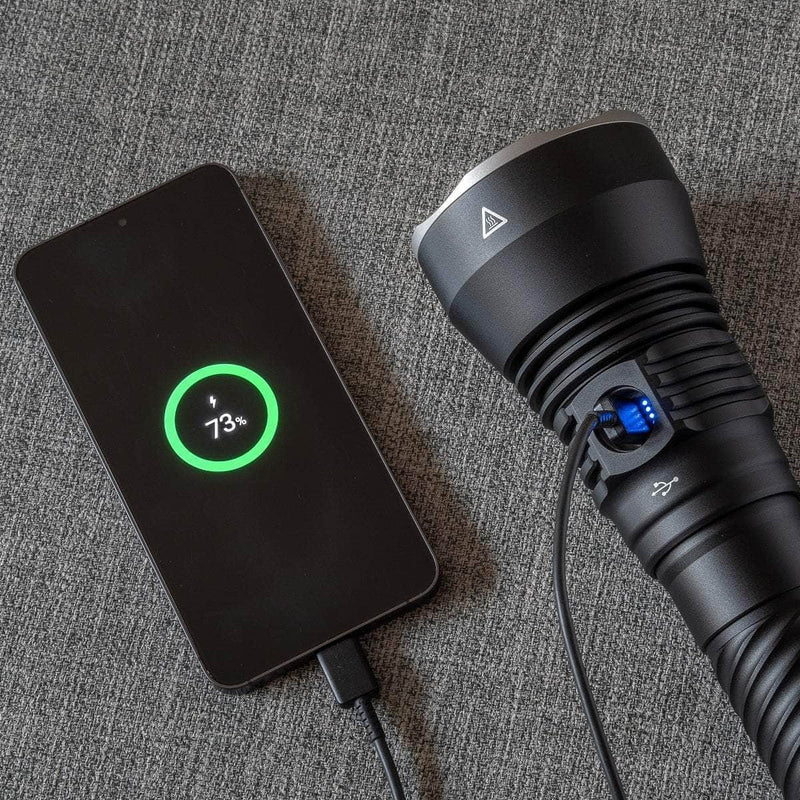

Charging the F6R is quick and efficient, thanks to its 18W power capability and multifunctional USB-C port that supports both input and output. It integrates a wide range of protocols, including QC2.0/QC3.0/SCP output, FCP/AFC input/output, TYPE-C/PD2.0/PD3.0 input/output, PPS output, and BC1.2/Apple/Samsung’s DCP, making it a reliable power bank for charging mobile phones and other digital devices. The F6R offers 5 different modes plus a strobe function, and its side-pressed electronic switch features a power indicator light and a lock mode to prevent accidental activation. With an outstanding 361,500 candela, this flashlight is the perfect tool for search and rescue, outdoor adventures, field operations, and more.
Performance and parameters:
-
Aluminum alloy CNC machined, hard anodized surface
-

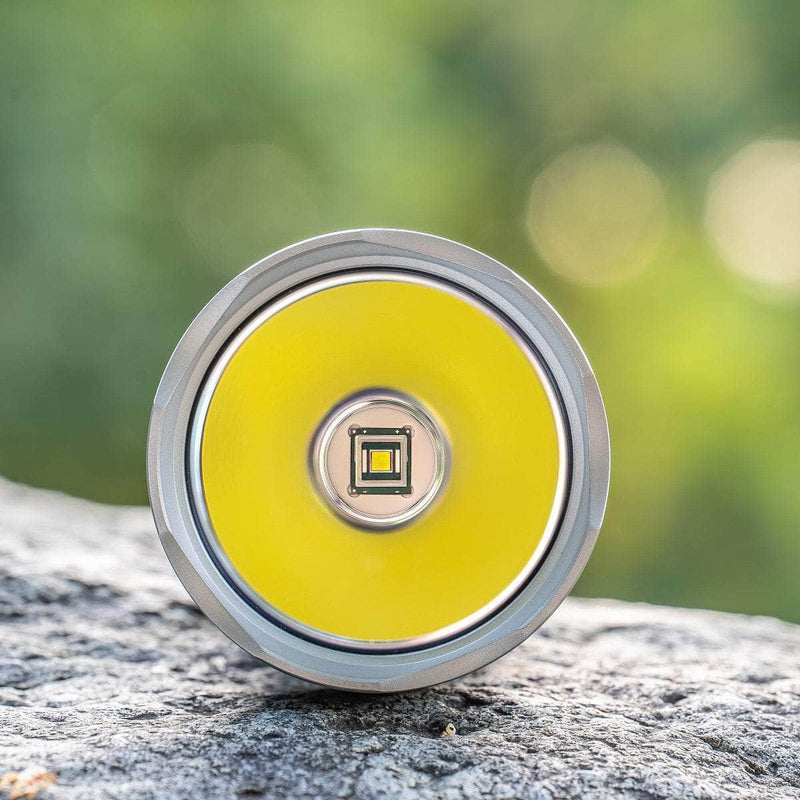

Aluminum alloy reflector, coated tempered glass lens, stainless steel bezel
-
Single high-power white light X-LED light source
-
Output:
|
Turbo |
High |
Med |
Low |
Eco |
Strobe |
Output(lumens)
|
5,200-1,900 |
3,400-2,160
|
1,900 |
580 |
150 |
N/A |
| Intensity |
361,500cd |
222,000cd |
124,200cd |
36,000cd
|
10,640cd |
N/A |
Distance
|
1,202m |
942m |
704m |
379m |
206m
|
N/A |
| Runtime |
4min+2h29min |
8min+2h13min |
3h19min |
11h50min |
47h30min |
N/A |
These data are obtained by testing the Weltool IXR33-150 battery at room temperature. Different test environments and conditions will affect the test data and are for reference only.
-
The flashlight has battery over-discharge protection, battery polarity protection, and low voltage reminder functions
-
High power mode with temperature protection function; no flicker, no noise, low standby current
-
USB-C output/input, supports all quick charge protocols such as high-voltage SCP, bidirectional PD3.0, etc.
-

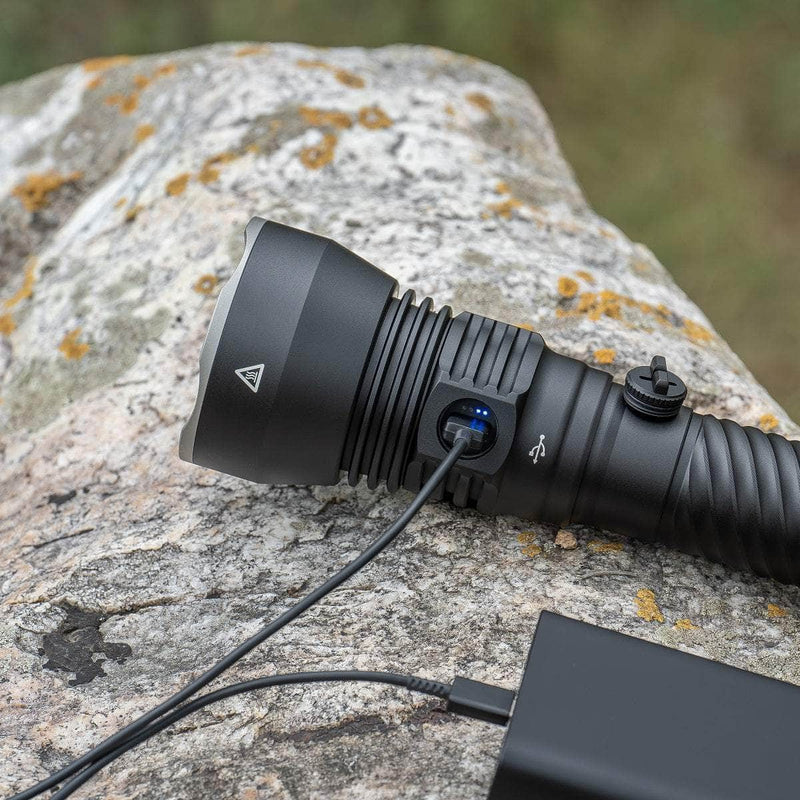

Patented USB charging structure, waterproof and dustproof; USB port waterproof cover with magnet, it can be attached to the flashlight body when charging
-

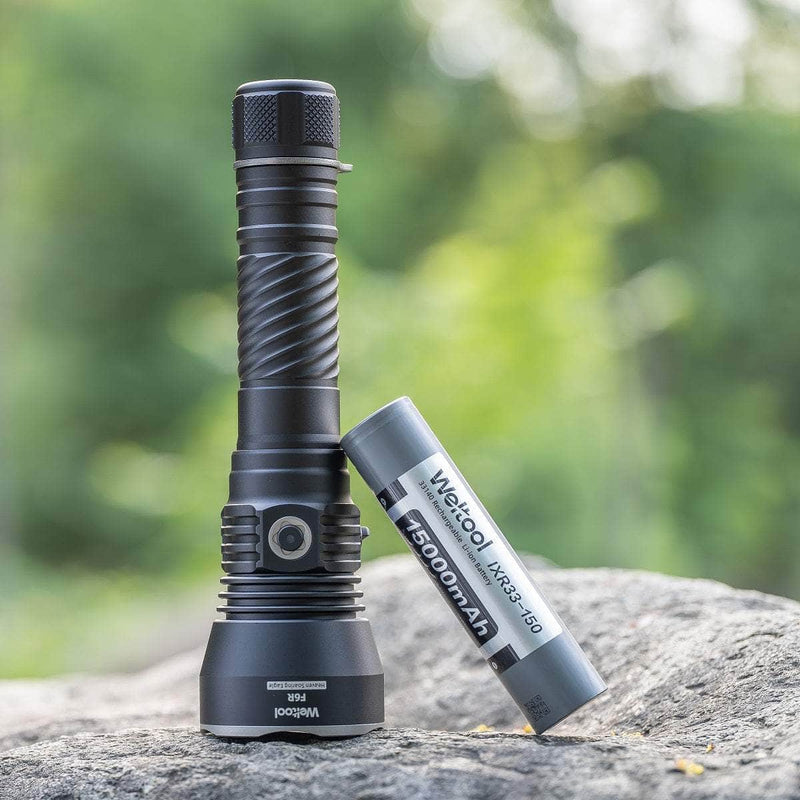

Use 1 IXR33-150 (33140) LMFP battery, 1,500 charge and discharge cycles
-
IP67, can be used in heavy rain
-
This flashlight has passed the 1-meter drop test
-
Each flashlight has an independent serial number
-
Weight: 960±1g (including battery)
-
Dimensions (±0.5mm): (head diameter) 73mm, (body diameter) 39mm, (length) 259.5mm
-
Includes: 1 IXR33-150 (33140) battery, 1 USB-C to USB-C charging cable, O-ring
Operation Instructions:
1. First, install the battery correctly. This product can only use 1 3.6V 33140 lithium-ion battery.
2. The flashlight has a polarity protection function. If it does not work, please check the battery.
3. Press the switch to turn on or off the flashlight. There is a power indicator on the switch button.
4. After turning on the flashlight, press and hold the switch, the flashlight will automatically switch to different modes. Release the switch to select the current mode and keep it on; when it is turned off or in any mode, double-click quickly to enter Turbo, and triple-click quickly to turn on Strobe. After the flashlight is turned off, the mode before turning it off will be remembered (but Turbo and Strobe are not remembered).
5. At the moment of turning on or when the flashlight is working, the power indicator will turn on (green light when the power is sufficient, red light when the power is low, and the indicator will automatically turn off after 5 seconds); when the power is very low, the red light will keep flashing, the main light of the flashlight will also flash, and then the flashlight will turn off at any time.
6. The power can also be detected when the flashlight is locked: press the switch once, and the power indicator will turn on.
7. The charging port has 4 blue charging status indicators. The display mode of the 4 lights during charging is:
Switch lock and unlock function:
-
Press the switch for more than 2 seconds in the off state to lock. The indicator light on the switch button and the main light of the flashlight will flash 3 times at the same time to indicate that it has been locked; after locking, the flashlight will remember the locked state and the mode before locking. At this time, you need to unlock it when replacing the battery and using it again.
-
After locking, press the switch for more than 2 seconds to unlock. After unlocking, the main light will turn on in memory mode.
